Electrical systems demand robust protection against environmental hazards. Flexible conduit paired with liquid-tight fittings creates an essential defense, safeguarding wiring from moisture, dust, debris, and physical damage. Here’s what you need to know:

Core Components

1. Flexible Conduit: A corrugated tube (metal or polymer) routing and shielding wires.
2. Liquid-Tight Fitting: Secures conduit to enclosures with a water-resistant seal, critical for wet/dirty environments.

Why Use Liquid-Tight Systems?

• Prevents corrosion from moisture ingress
• Blocks contaminants like dust and chemicals
• Ensures long-term reliability when installed correctly

Fitting Types & SelectionFittings vary by material (brass, stainless steel, polymer), size (trade sizes), and angle configuration. Key factors for selection:

• Application environment (humidity, temperature, corrosion risk)
• Conduit type
• Electrical codes (e.g., NEC standards)

Common Configurations:

• Straight: Direct enclosure side-entry

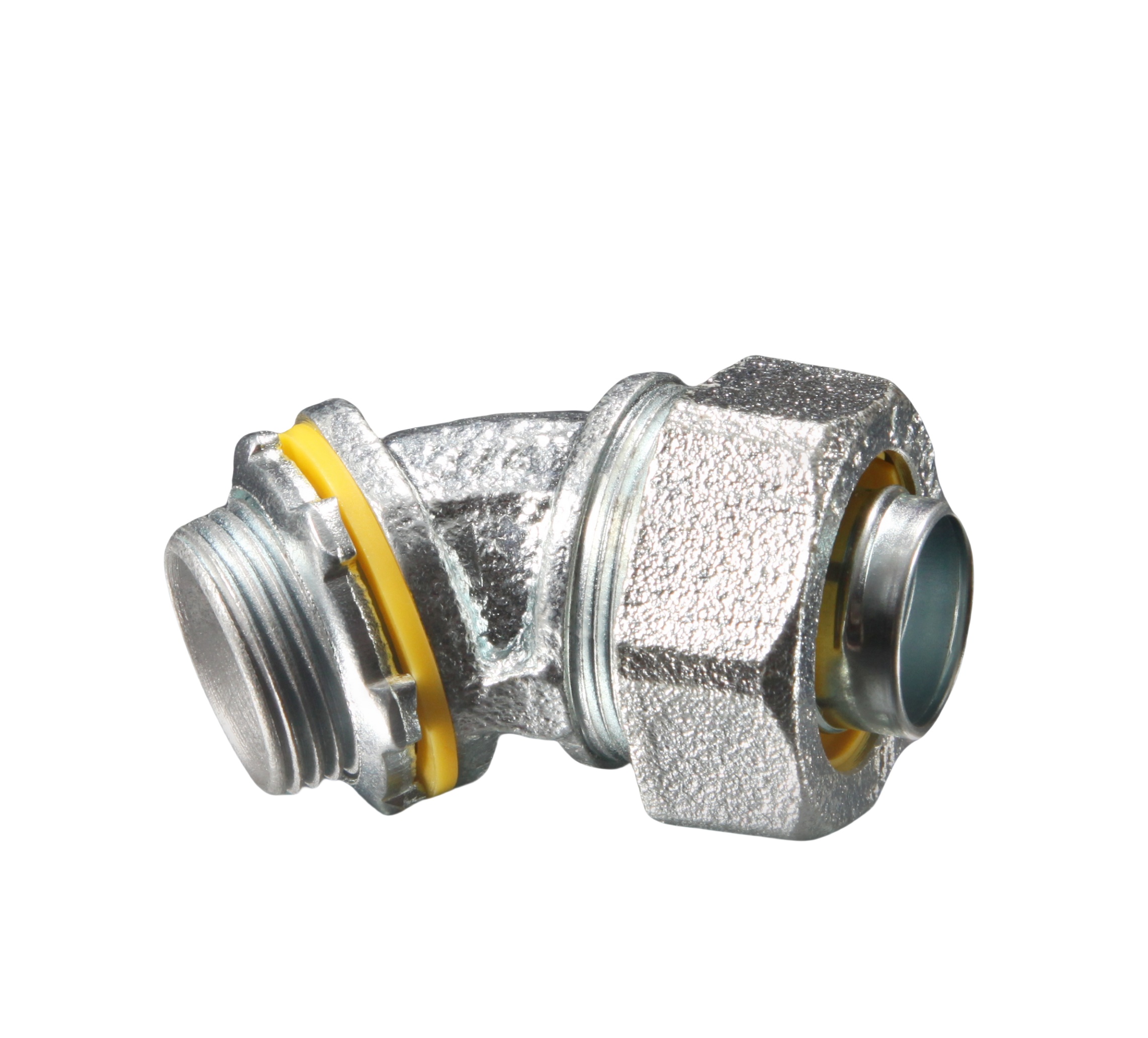

• 45-Degree: Gentle directional changes
• 90-Degree: Right-angle turns

Critical Assembly StepsA proper seal depends on precise installation:

1. Prepare conduit: Cut cleanly; deburr edges.
2. Clean components: Wipe threads and enclosure surfaces.
3. Avoid cross-threading: Align parts carefully.
4. Torque correctly: Tighten to UL/CSA specifications.

Key Fitting AnatomyUnderstand these components for optimal performance:

• Gland Nut: Compresses sealing elements against the conduit.
• Sealing Ring: Polymer ring creating radial pressure when tightened.
• Ferrule: Grips conduit convolutions internally for traction.
• Body: Houses sealing components and threads into enclosures.
• Lock Nut: Prevents loosening at enclosure entry points.
• Sealing Washer: Compresses against enclosures for ingress protection.
• Insulated Throat: Guards wires against abrasion (common in food-grade/hygienic designs).

Why Proper Installation MattersCorrectly assembled liquid-tight systems:

• Extend wiring lifespan
• Reduce maintenance costs
• Ensure compliance with safety regulations

Investing in quality fittings and meticulous installation pays dividends in system durability and safety. Always prioritize manufacturer guidelines and local electrical codes.
