When it comes to installing rigid metal conduit (RMC) systems, one critical aspect that cannot be overlooked is the selection of the appropriate connectors and couplings. These components play a vital role in creating a secure and reliable electrical infrastructure. In this blog post, we will delve deep into the differences, applications, and key considerations for choosing the perfect type for your project.
What Exactly Are Rigid Connectors and Couplings?
Rigid connectors and couplings are essential fittings in electrical installations. They are used to join sections of rigid conduit, typically made of galvanized steel or aluminum, or to terminate the conduit into enclosures, panels, or boxes. Their main functions include ensuring electrical continuity, providing physical support, and protecting the conductors within. There are two primary types: threaded and threadless, each with distinct characteristics and applications.
Threaded Connectors & Couplings: The Sturdy Solution
Applications
Threaded connectors and couplings are designed for use with threaded rigid metal conduit (RMC). They are commonly employed in industrial settings, heavy commercial projects, and hazardous locations. The threaded connection offers a mechanically secure and grounded link, making it an ideal choice for environments where protection against physical damage is crucial. In fact, according to the National Electrical Code (NEC), threaded connectors are often required in Class I Division 1 hazardous locations.
Available Sizes
These fittings are available in a wide range of sizes, from 1/2" through 6". The most commonly used sizes include 1/2", 3/4", 1", 1-1/4", 1-1/2", and 2". This variety ensures that you can find the right fit for almost any project.
Advantages
One of the significant advantages of threaded connectors is their ability to resist vibration, which is particularly important in industrial and heavy machinery environments. They also ensure strong bonding and reliable grounding, enhancing the overall safety of the electrical system.
Installation Note
It's important to note that installing threaded connectors requires either a threader or pre-threaded conduit. Additionally, in wet or corrosive environments, using a thread sealant is essential to prevent water ingress and corrosion.
Threadless Connectors & Couplings: The Quick and Versatile Option
Types
Threadless connectors come in two main types: set-screw and compression. Set-screw type connectors use screws to secure themselves to the conduit, while compression type connectors utilize a compression ring and nut to create a watertight seal.
Applications
These connectors are suitable for use with non-threaded RMC or intermediate metal conduit (IMC). They are an excellent choice for commercial buildings, garages, and surface-mounted systems. Threadless connectors are often used for above-ground conduit runs in dry or damp locations.
Available Sizes
They are available in sizes ranging from 1/2" through 4", with the most common sizes being 1/2", 3/4", 1", 1-1/2", and 2".
Advantages
The primary advantage of threadless connectors is their faster installation process, as there's no need for threading the conduit. They also offer a cleaner appearance in finished spaces, which is a plus in commercial and residential settings. Compression versions are particularly useful in wet locations due to their watertight seal.
Installation Note
Set-screw types are generally suitable only for dry locations. When using threadless connectors, it's crucial to always check the UL listing and ensure NEC compliance to guarantee safety and code adherence.
Why Two Types? Understanding the Choice
The decision between threaded and threadless connectors and couplings depends on several factors. Jobsite needs, installation speed requirements, the environment (dry, wet, or hazardous), and code compliance all play a role. Threaded systems are favored in industrial and hazardous locations because of their mechanical strength and reliable grounding. On the other hand, threadless systems offer speed and flexibility, making them a top pick for commercial builds with indoor conduit runs.

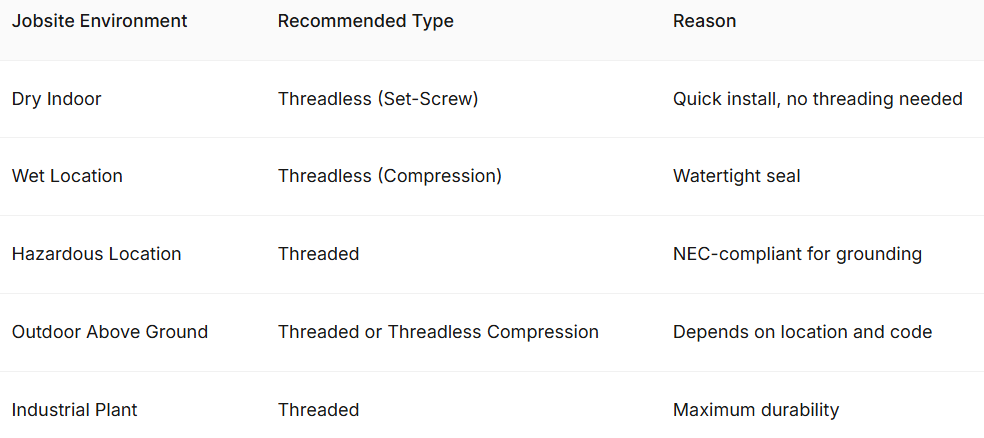

Choosing the Right Connector or Coupling: A Guide
