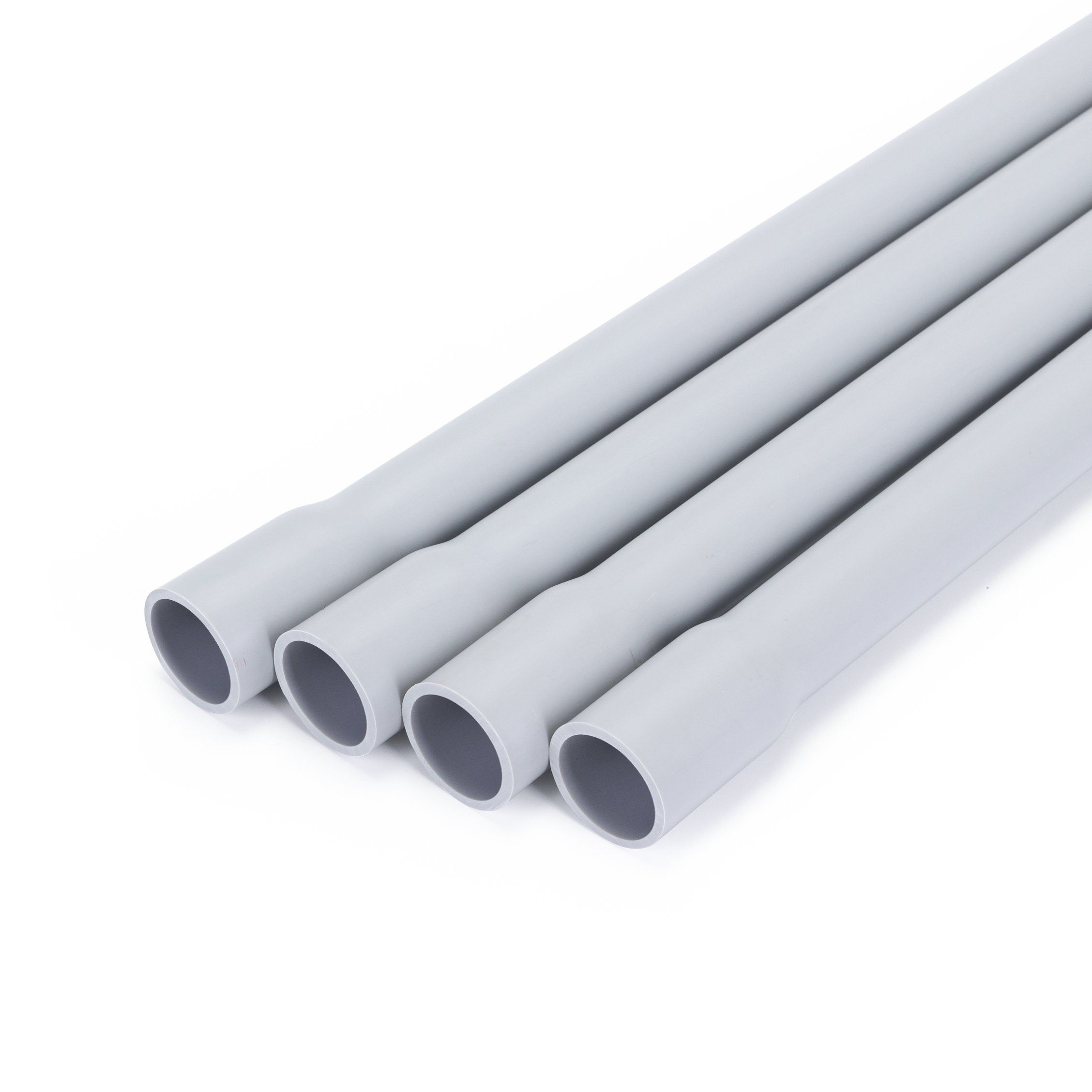

Protecting your electrical wiring starts with understanding its shield. PVC electrical conduit is the unsung hero in countless homes and buildings, safeguarding wires from physical damage, moisture, and chemicals. Its affordability, durability, and ease of installation make it a universal choice. But there's a silent factor that dramatically impacts its performance: temperature.

Why Temperature is the Silent Game-Changer for PVC Conduit

PVC's physical properties are inherently temperature-sensitive. Think of it like this: temperature fluctuations directly control its strength, flexibility, and structural integrity. Ignoring this relationship risks conduit failure and potential wiring hazards. The core risks are:

• Heat Weakens: High temperatures soften PVC, leading to sagging or warping.
• Cold Brittles: Low temperatures make PVC rigid and prone to cracking.
• Expansion & Contraction: Temperature swings cause the conduit to expand and contract, stressing joints and potentially damaging wires inside.

The Heat is On: Impacts of High Temperatures on PVC Conduit

While warmth makes PVC conduit momentarily easier to bend, long-term heat exposure is a major threat:

1. Loss of Structural Integrity & Sagging: Under sustained heat (e.g., direct sunlight on rooftops), PVC softens significantly. This can cause unsupported conduit runs to sag under their own weight, potentially pulling loose from fittings or straining connections. Solution: Increase support spacing significantly in hot environments or areas exposed to heat sources. Never install softened conduit exposed to direct sun.
2. Pressure Rating Plummets: PVC conduit's ability to withstand pressure (like buried applications or physical loads) drops sharply as temperature rises. For example, a conduit rated at 450 PSI at 23°C (73°F) might see its rating plummet by 30% or more at 60°C (140°F). Always consult manufacturer ratings for specific temperature de-rating.

Bracing for the Cold: Impacts of Low Temperatures on PVC Conduit

When the mercury drops, PVC conduit faces a different set of challenges focused on brittleness and impact resistance:

1. Increased Brittleness & Crack Risk: Below freezing (0°C / 32°F), standard PVC becomes increasingly hard and brittle. A simple impact – being dropped during handling, struck by a tool, or even pressure from freezing soil around buried conduit – can cause immediate cracks or fractures. Solution: Handle with extreme care in freezing conditions.
2. Dangerous Bending: Attempting to bend standard PVC conduit in cold weather drastically increases the risk of it snapping suddenly. This is a common installation pitfall. Solution: Pre-storage in heated areas or specialized cold-weather conduit formulations are essential for winter installations.
3. Frozen Ground Hazards: Buried conduit in cold climates faces the threat of frost heave. As soil freezes and expands, it exerts immense pressure on the brittle conduit, easily causing crushing or splitting. Solution: Proper burial depth below the frost line and potential use of specialized conduit or backfill materials is crucial.

Smart Design & Installation: Mastering Temperature Extremes

Success with PVC conduit hinges on anticipating and mitigating temperature effects throughout design and installation:

• Designing for Expansion/Contraction:
  • Use Expansion Fittings: Mandatory on long, straight runs (check local codes/NEC for specifics) to absorb length changes.
  • Avoid Overtightening Fittings: Allow slight conduit movement within supports and couplings (1-2mm gap). Avoid rigid clamping against walls.
• Material Selection Matters:
  • High Heat Zones: Opt for PVC formulations explicitly rated for higher temperatures (e.g., Schedule 80 or specific high-temp conduit), often containing enhanced stabilizers. Essential near boilers, furnaces, or intense sun exposure.
  • Freezing Conditions: Use conduit specifically designed for cold weather installation. These often contain special plasticizers that maintain flexibility at lower temperatures.
• Installation Best Practices:
  • Cold Weather:
    • Pre-Warm Conduit: Store indoors or in a heated space (>10°C / 50°F) for 24+ hours before installation.
    • Cut Carefully: Use extremely sharp tools designed for PVC to ensure clean cuts, minimizing crack initiation points.
    • Avoid Bending: If bending is absolutely necessary, use specialized cold-weather conduit and heat it very carefully and uniformly with an approved method only if permitted by the manufacturer.
  • Hot Weather:
    • Avoid Sun-Baked Installation: Don't install conduit that has been softened by direct sun exposure; wait for cooler times or shade it.
    • Increase Supports: Significantly reduce spacing between supports to prevent sagging caused by heat-induced softening.

The Bottom Line: Temperature Mastery = Wiring Longevity

PVC electrical conduit offers exceptional protection – when its temperature limitations are respected. Understanding how heat saps its strength and cold makes it brittle is non-negotiable for safe, reliable electrical systems. By strategically selecting materials based on your environment, incorporating expansion control in your designs, and following temperature-aware installation protocols, you ensure your PVC conduit performs flawlessly for decades, whether facing scorching summers or freezing winters. Don't let temperature be the weak link in your wiring protection strategy.

‍
