Ever wondered how electricity safely powers your home? A reliable residential electrical wiring system is the backbone of modern living. Let’s break down the key components – from the utility lines to your light switches – for homeowners and DIY enthusiasts alike.

1. The Service Entrance: Where Power Meets Your Home

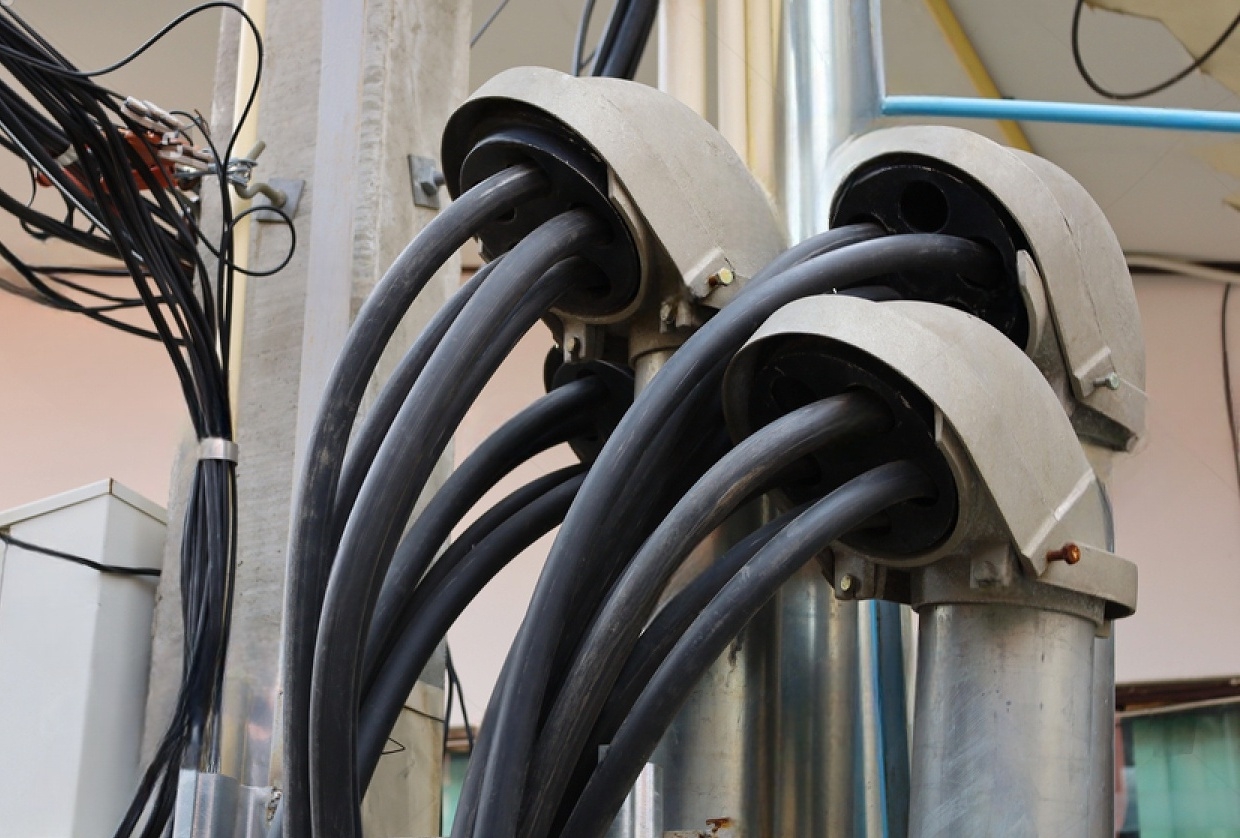

‍Your home’s electrical journey begins at the service entrance. This critical link connects the utility company's power lines to your property. Key facts:

• Service Drop vs. Service Lateral: Overhead cables are called a service drop, while underground lines are a service lateral.
• The Connection Point: Wires connect at a weather head (service head) on your roof or exterior wall.
• Voltage Essentials: Standard residential service uses two 120V hot wires (totaling 240V for large appliances) and one neutral wire.
• Responsibility Boundary: Crucially, the utility company's responsibility ends at the meter. Everything beyond is the homeowner’s domain.

2. The Electric Meter: Tracking Your Energy Use

‍Next, power flows through your electric meter:

• Location: Mounted externally or integrated into your breaker box.
• Function: Precisely measures consumption in kilowatt-hours (kWh) (e.g., a 100-watt bulb running for 10 hours = 1 kWh).
• Technology: While analog meters exist, modern digital meters dominate, enabling remote reading by your utility provider. This is the basis of your monthly electric bill.

3. The Main Service Panel: Your Home's Electrical Hub

‍Often called the breaker box or circuit breaker panel, this is your system's command center:

• Distribution: Routes power to all household circuits.
• Protection: Each circuit has a circuit breaker that automatically trips during a short circuit or overload, cutting power safely. Older homes might use fuses (equally effective but less convenient than modern breakers).
• Critical Safety Note: ⚠️ Power entering the meter and main panel is ALWAYS LIVE. Only the utility company can de-energize this section. While the main breaker shuts off power to your circuits, incoming power to the panel remains live. Never work on these areas without professional utility shutdown.

4. Electrical Boxes: Safely Housing ConnectionsElectrical boxes (or junction boxes) are essential safety containers:

• Purpose: Secure wire connections (splices) and house devices like switches, outlets (receptacles), and light fixtures.
• Types & Rules: Available in plastic or metal. Metal electrical boxes require grounding to your home's grounding system; plastic boxes do not, being naturally non-conductive.
• Sizing: Must be appropriately sized for the number and gauge of electrical wires within.

5. Wires: Conducting Power Safely‍

Understanding your wiring is key:

• Hot Wires: Carry live current from the panel (typically black or red, but colors can vary).
• Neutral Wires: Complete the circuit, returning current to the panel (typically white). Note: In some switch loops, a white wire may be used as a hot wire (marked with tape).
• Ground Wire: The vital safety component (usually bare copper or green). Provides a safe path for stray current during a fault.

6. Grounding: Your Essential Safety Net

‍The electrical ground is non-negotiable for safety:

• Function: Creates a safe path for electricity during faults (short circuits, power surges), preventing shock and fire.
• Modern Systems: Each circuit has a dedicated ground wire running back to the service panel, ultimately connecting to a ground rod buried deep in the earth (or another approved grounding electrode).
• Older Homes: Grounding might rely on metal conduit, metal junction boxes, or even metal water pipes – systems that may be less reliable today.

Key Takeaways for Homeowners

• Know Your Boundaries: The utility owns up to the meter; you own everything after.
• Respect Live Wires: Power to the meter and main panel is always energized. Contact professionals for work in these areas.
• Understand Your Panel: Your breaker box (or fuse box) is the heart of your system, protecting your circuits.
• Grounding is Critical: Ensure your electrical ground system is intact and modern for safety.

Understanding your home's residential electrical wiring empowers you to communicate effectively with electricians, perform safer DIY tasks, and appreciate the complex system delivering power reliably every day. Always prioritize safety and consult a licensed electrician for significant work or concerns!

‍
